Laser Replica 15:1 Boom Vang Assembly

The Barton boom vang assembly gives all the advantages of systems costing twice the price. 15:1 purchase is achieved through clever design of the base plate, fitted with the unique Barton swivelling triple cam block.

It is simple to fit and easy to use.

Compatible With:

• Laser class sailboats

In the Box:

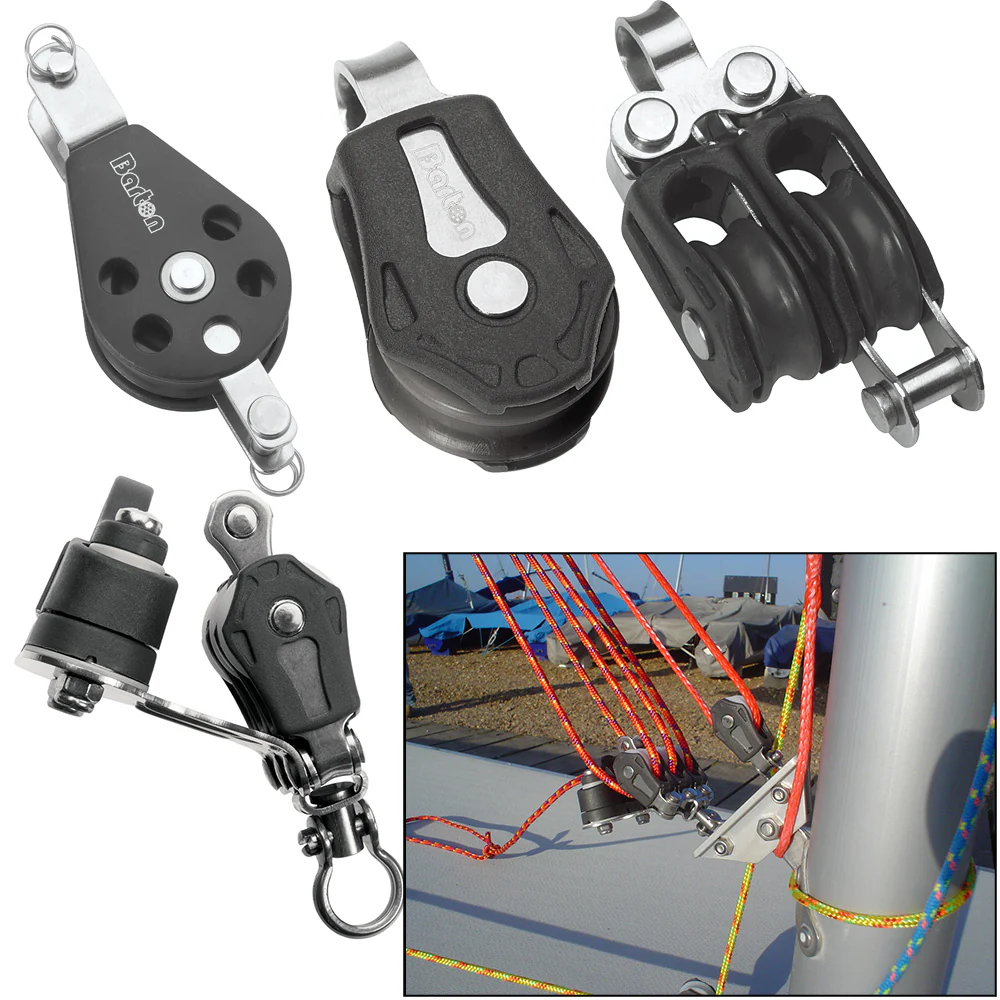

• Barton base plate - Spectro anodised aluminium with three fixing bolts
• 00 931 Series 0 triple swivel cam block (attached to base plate by shackle)
• 00 110 Series 0 single fixed eye block (attached to base plate by shackle)
• 00 211 Series 0 double block with becket
• 01 091 Series 1 single tang block with becket and curved kicker key for boom
• 3' 11" (1.2 M) of 5/32"  (4 mm) - dyneema line for primary Red control line
• 9' 11"(3 M) of 5/32"  (4 mm)  line for secondary Red control line

*Sold as and Individual
