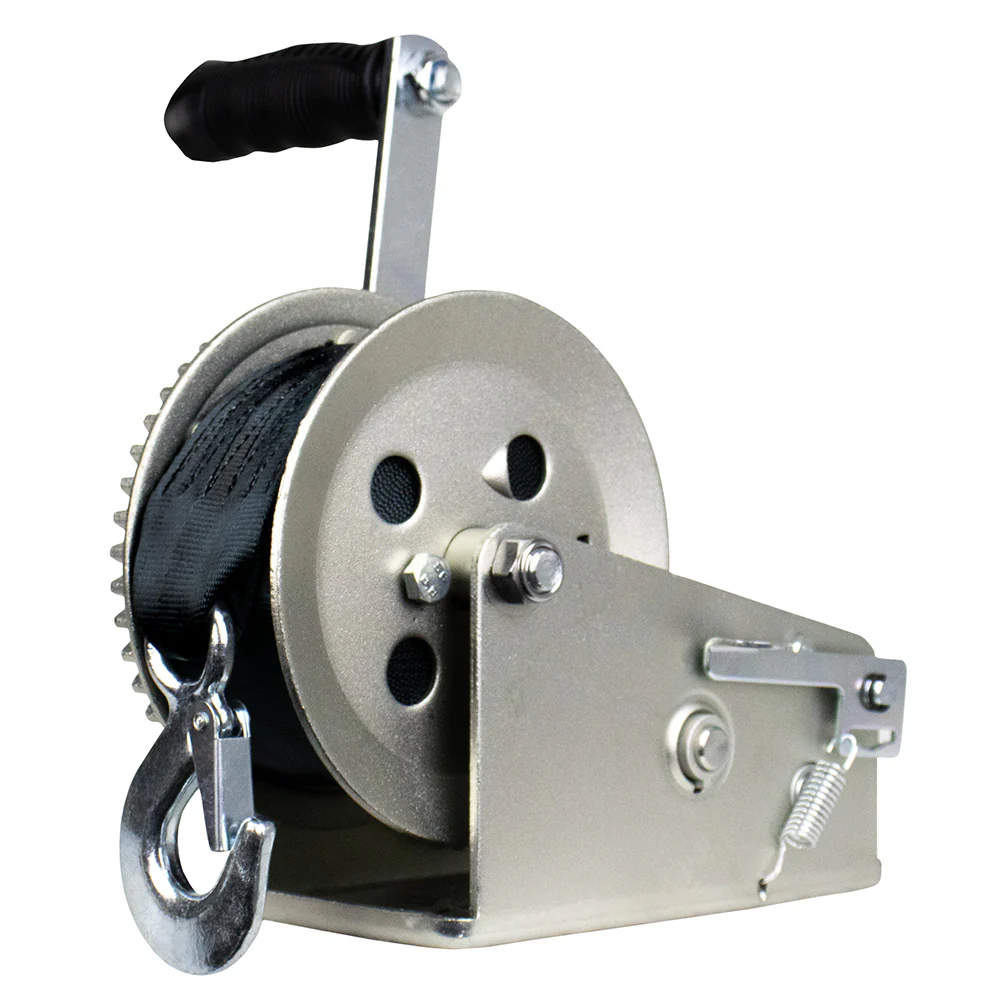

Utility Series Winch 2,500lb, 2 Speed, 8" Crank Arm - Zinc

Fully assembled and ready to install.

Features:

• Oversized textured handle - Comfortable, no-slip grip
• Premium precision gearing - High-efficiency gearing improves pulling capacity with less cranking torque
• Dual-bolt clamp coupling - Ensures crank arm will not loosen or decouple from pinion spindle
• Powder-coated, die-cast, aluminum crank arm - Superior leverage
• Oversized, powder-coated, steel frame - Maximum loading strength and durability
• Integrated zerk grease fitting - Easy pawl and ratchet gear lubrication
• Powder-coated, die-cast, aluminum covers - Durable design resists corrosion, long-lasting
• Adjustable mounting - Accommodates numerous trailer configurations
• High-quality, 20' strap - 2” wide, four-panel webbing, polyester strap with forged snap hook

Specifications:

• Weight Capacity (lbs): 600, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2500, 3200
• Color: Zinc
• Finish: Zinc Plated
• Cover: None
• Crank Arm Lengths: 6” or 8”, 9” or 11” for 3200 only
• Application: Freshwater

Specifications:

• Gear Ratio: 8.1:1
• Manual/Electric: Manual
• Pull Strength (lbs): 2500
• Box Dimensions: 7"H x 8"W x 10"L WT: 11.7 lbs
• UPC: 810123843633
